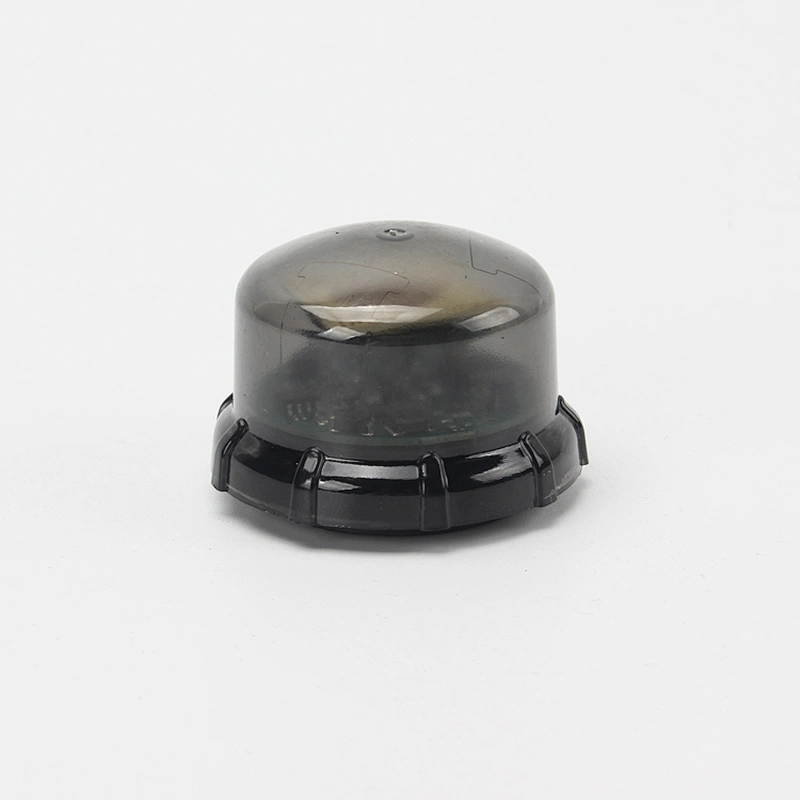

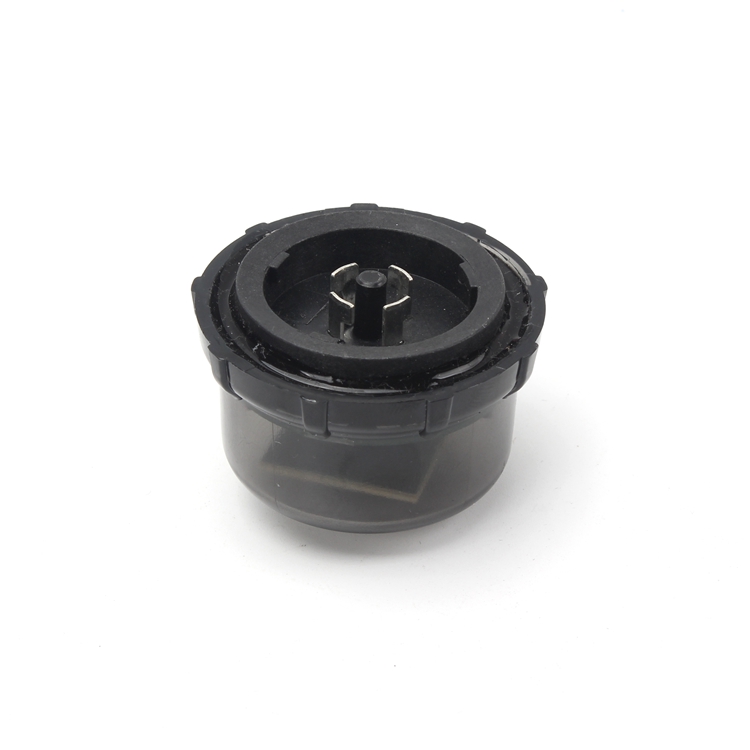

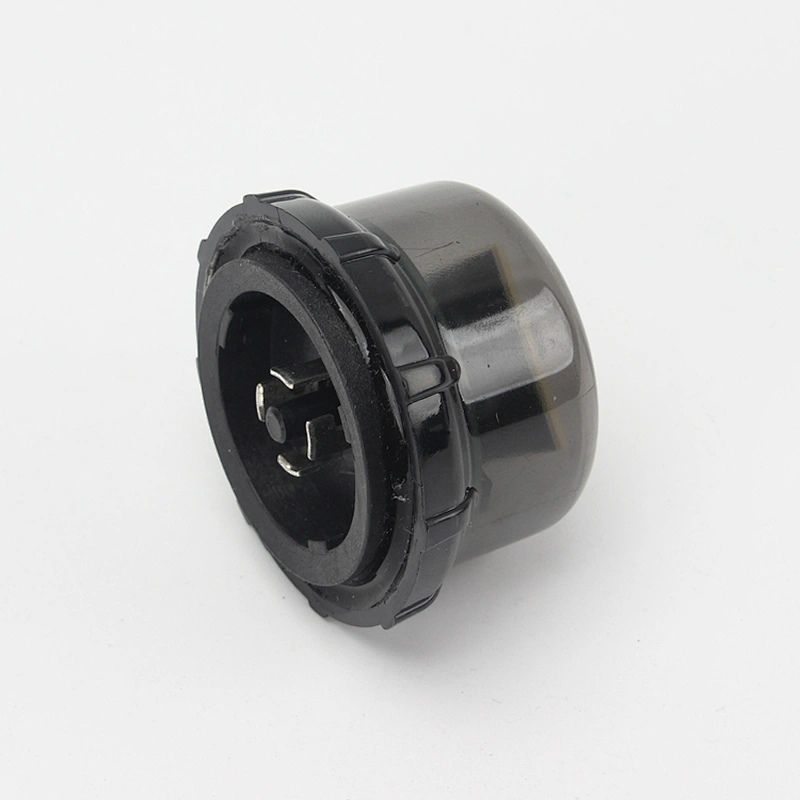

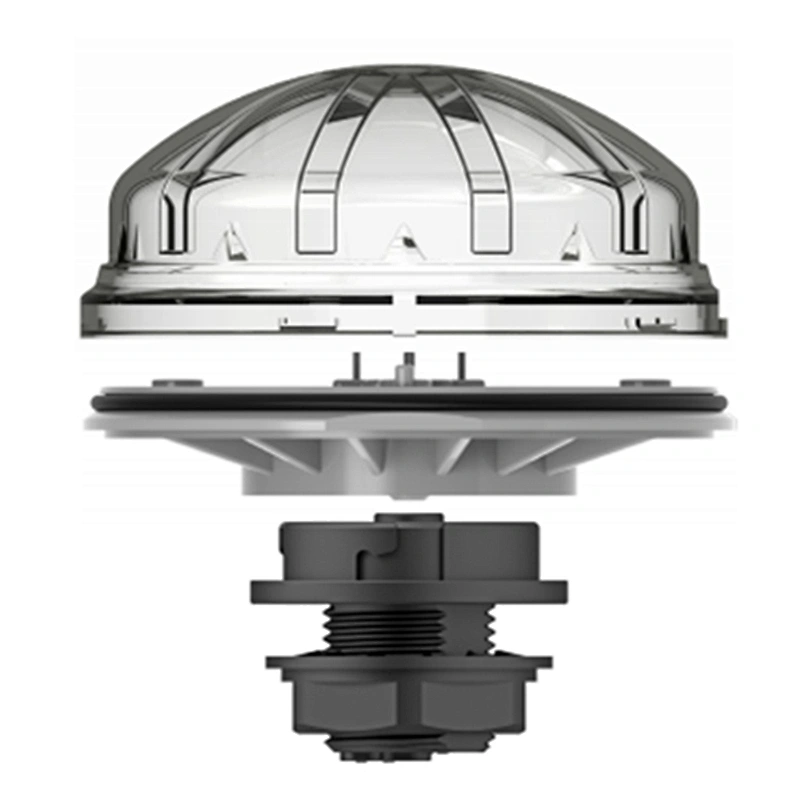

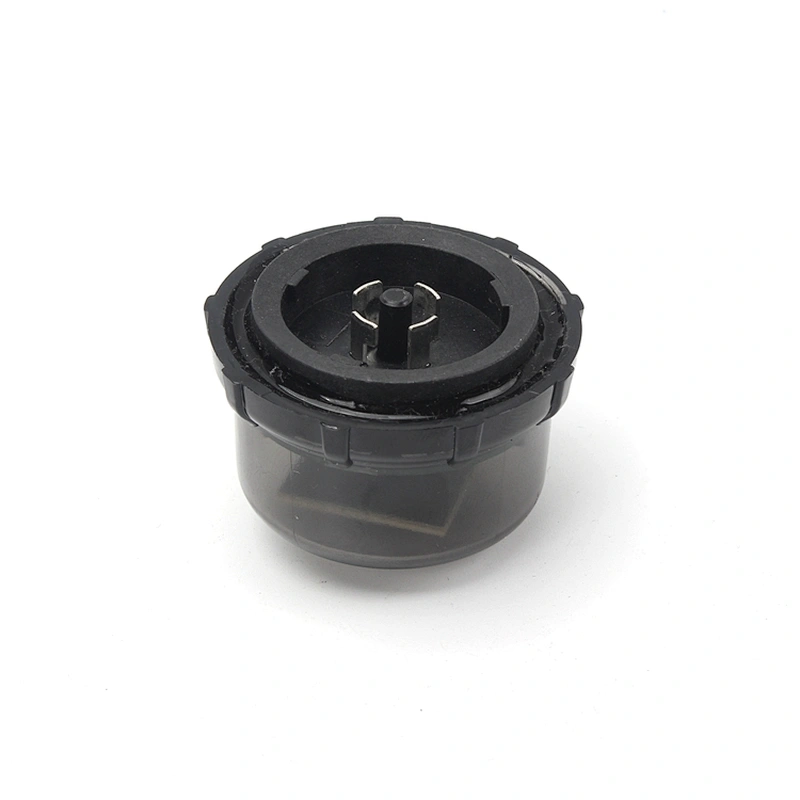

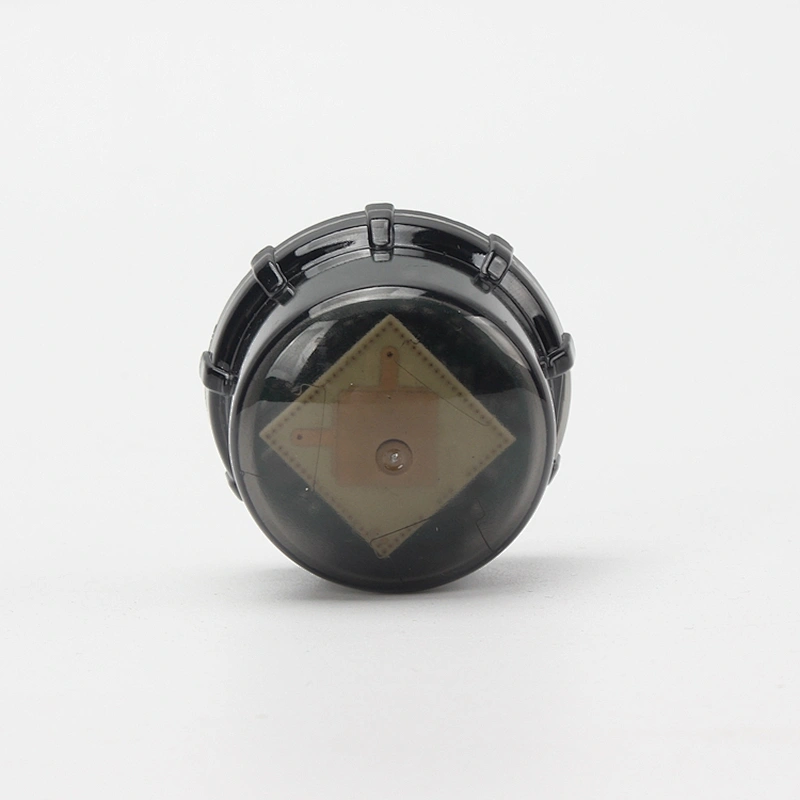

single-lamp controller

LP10-ZHAGA single-lamp controller consists of DALI driver circuit, which collect real-time load performance and power consumption of single-lamp controller. It helps to largely reduce work load of street lamp management department, and improve working efficiency, therefore significantly improve energy-saving benefit of all society.

Main Performance Features of LP10-ZHAGAsingle-lamp controller:

●Input power: DC24V

●Output signal：DALI2.0

●Measuring current, voltage, power, Power consumption detection function.

●Suitable for Philips SR digital driver

●Monitor the working status of lamps and lanterns, anomalies output alarm

●GPS location, reverse location query to check lamp failure

●Local timing, latitude and longitude control function

●Over-current protection, lamps condition detection and default lighting functions.

●Switch and the dimming suitable for lamps, such as LED lamp, high voltage sodium lamp and metal halide lamp etc.

●Overload protection design based on Security

●Radio frequency: global free frequency band of 2.4G ISM

●Number of wireless channel: 16

●Single network capacity: 65535 nodes

●Thorough communication protocol of ZIGBEE wireless networking

●Industrial operating temperature range: －40℃～＋85℃

●Easy and simple installation,can respond to the instructions sent by the center in seconds.
